How-To: Mod a Nerf Revolver: Part 1

A long time ago in a blog very nearby, I reviewed the Nerf Maverick revolver and promised to post a how-to on the mods I've made to it. Here, finally, is the first of them:

In stock form, the Maverick's cylinder only swings out about 20 or 30 degrees, just far enough to load a couple of darts at a time. Additionally, the cylinder doesn't spin continuously; its rotation is quantized into increments 360/6 = 60 degrees. These 2 shortcomings make reloading in the heat of a harmless, foam shoot-out time-consuming and frustrating. This post will show how to mod your Maverick's cylinder to swing out about 90 degrees and spin more freely, increasing both the reload speed and the all-important coolness factor.

Place the "weapon" down on its left side. Remove the 3 screws holding the slide together. Remove the slide.


Remove the remaining 8 or so screws holding the right half of the frame to the left.

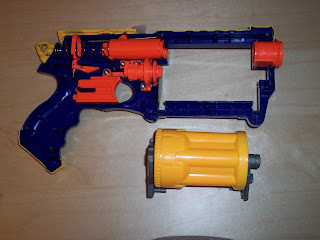

Lift out the cylinder, along with the gray front and rear arms that support it.

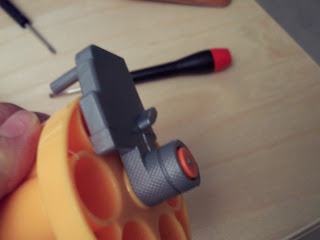

Examine the front support arm, and you will find a nub that prevents the arm from swinging out of the frame.


Use a utility knife to cut off the offending nub.

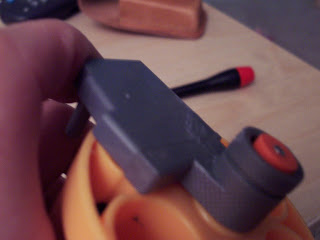

You are now halfway done. Examine the left frame, just to the rear of where the cylinder would sit. You will find another nub, this one preventing the rear arm from swinging out freely.


Cut that nub off, too.


Now reassemble the gun.


The cylinder will now swing out all the way and spin easily, enabling quick reloading and fun, nontoxic Russian roulette.


Your newly modified Maverick can now be used to rain brightly colored, suction-cup-tipped terror down upon your young nieces and nephews. But not your dog; that's just mean.

The second modification can be found here.
